AEA

AEA R88A; active stereo ribbon microphone in Blumlein set-up; active version of the R88 mkII with a level increase of 12 dB; can also be used as a mid-side configuration; 2 ribbons placed one above the other at a 90º angle; polar pattern: figure-of-eight; Each 1.8 µm thin aluminum ribbon (4.7 mm x 59.7 mm); Frequency Response: 20Hz to 20kHz; Maximum sound pressure level: 141 dB SPL; Sensitivity: 7.4 mV/Pa (-42.6 dBV); Output Impedance: 92 ohms; requires 48V phantom power; Connection: XLR-5M plug; Handmade in USA; incl. 4.5 m cable XLR 5F plug to 2 x XLR3-M, swivel adapter, protective cover, high-quality transport case; Dimensions (H x D): 381 x 99 mm; Weight: 2.8kg

• Operating principle: Pressure gradient receiver
• Polar pattern: Eight
• Different sound colouration on front and rear side
• 1.8 µm thin aluminium ribbon (4.7 x 59.7 mm)
• Ideal for brass, guitar amps, kick drum and percussion
• Frequency range: 20 to 20,000 Hz
• Limiting sound pressure level: 165 dB SPL (1% THD > 1 kHz)
• Sensitivity: 1.8 mV/Pa (-55dBV) at 1 kHz
• Output impedance: 270 Ohm
• Fixed 3 m cable with XLR3-M connector
• Dimensions (H x W x D): 191 x 74 x 64 mm
• Weight: 0.893 kg
• Incl. microphone holder, protective cover and carrying case
• Handmade in USA

AEA N22 NUVO; active ribbon microphone; polar pattern: figure-of-eight; 1.8 µm thin aluminum ribbon (4.7 mm x 59.7 mm); perfect for vocals, electric guitar, bass, bass drum, acoustic guitar and percussion; reduced proximity effect; frequency range: 20 Hz to 20 kHz; maximum sound pressure level: 141 dB SPL (1% THD > 1 kHz); sensitivity: 8.3 mV/Pa at 1 kHz; output impedance: 92 ohms; requires 48V phantom power; handmade in USA; includes. Microphone mount, protective case and carrying case; Dimensions (H x D): 225 x 410 mm; Weight: 0.335 kg

AEA R84; ribbon microphone; polar pattern: figure-of-eight; 1.8 µm thin aluminum ribbon (4.7 mm x 59.7 mm); reduced proximity effect and treble boost; frequency range: 20 Hz to 20 kHz; maximum SPL: 165 dB SPL (1% THD > 1 kHz); output impedance: 270 ohms; fixed 3m cable with XLR3-M connector; handmade in USA; includes. Microphone holder, protective case and carrying case; Dimensions (H x W x D): 295 x 99 x 64 mm; Weight: 1.3 Kg

AEA R44C; ribbon microphone; replica of the RCA 44BX (Big Ribbon Microphone); legendary- warm sound character; polar pattern: figure-of-eight; 1.8 µm thin folded aluminum ribbon (4.7 mm x 59.7 mm); perfect for vocals, strings, woodwinds, brass, guitars and drums; frequency range: 20 Hz to 20 kHz; maximum SPL: 165 dB SPL (1% THD > 1 kHz); sensitivity: 2.25mV/Pa. (-53 dBV) at 1 kHz; output impedance: 270 ohms; fixed 3 m cable with XLR3-M connector; handmade in USA; incl. microphone holder , protective cover and high-quality carrying case; dimensions (H x W x D): 311 x 117 x 83 mm; weight: 2.97 Kg

AEA N8 Stereoset NUVO; active ribbon microphone stereo set; mono version from AEA R88 with pre-amplification; polar pattern: figure-of-eight; 1.8 µm thin aluminum ribbon (4.7 mm x 59.7 mm); perfect for drums, strings and piano/wings; frequency range: 20 Hz to 20 kHz; maximum sound pressure level: 141 dB SPL (1% THD > 1 kHz); sensitivity: 8.3 mV/Pa at 1 kHz; output impedance: 92 ohms; requires phantom power 48V; handmade in USA; includes. Microphone mount, protective case and carrying case; Dimensions (H x D): 225 x 410 mm; Weight: 0.335 kg

AEA N22 Stereoset NUVO; active ribbon microphone stereo set; polar pattern: figure-of-eight; 1.8 µm thin aluminum ribbon (4.7 mm x 59.7 mm); perfect for vocals, electric guitar, bass, bass drum, acoustic guitar and percussion; reduced proximity effect; frequency range: 20 Hz to 20 kHz; maximum sound pressure level: 141 dB SPL (1% THD > 1 kHz); sensitivity: 8.3 mV/Pa at 1 kHz; output impedance: 92 ohms; requires 48V phantom power; handmade in USA; includes. Microphone mount, protective case and carrying case; Dimensions (H x D): 225 x 410 mm; Weight: 0.335 kg

AEA A440; ribbon microphone; active ribbon microphone; active version of the R44 with a level boost of 18 dB; polar pattern: figure-of-eight; 1.8 µm thin folded aluminum ribbon (4.7 mm x 59.7 mm); perfect for vocals, strings, woodwind and brass instruments, guitars and drums; frequency range: 20 Hz to 20 kHz; maximum SPL: 136+ dB SPL (1% THD > 1 kHz); sensitivity: 30 mV/Pa. (-33.5 dBV) at 1 kHz without load; output impedance: 92 ohms; requires 48V phantom power; handmade in USA; includes microphone holder, protective case and high-quality carrying case; permanently attached 3 m cable with XLR3-M connector; dimensions (H x W x D): 311 mm x 117 mm x 83 mm; weight: 3.1 Kg

AEA KU4; passive ribbon microphone; 1.8 µm thin folded aluminum ribbon (2.1 mm x 28.6 mm); polar pattern: supercardioid; reduced proximity effect; applications: vocals and instrument pickup; frequency range: 30 Hz to 20 kHz; maximum SPL: 140 dB SPL (above 200 Hz for 1% THD); sensitivity: -52dBV (2. 5 mV/Pa) at 1 kHz; output impedance: 300 ohms; handmade in USA; incl. microphone holder , protective case and high-quality carrying case; dimensions (H x W x D): 320 x 116 x 94 mm; weight: 2.23 kg

AEA R44CE; ribbon microphone; aurally identical version of the AEA R44C with less expensive external components; polar pattern: figure-of-eight; 1.8 µm thin folded aluminum ribbon (4.7 mm x 59.7 mm); perfect for vocals, strings, woodwind and brass instruments, guitars and drums; frequency range: 20 Hz to 20 kHz; maximum sound pressure level: 165 dB SPL (1% THD > 1 kHz); sensitivity: 2.25mV/Pa. (-53 dBV) at 1 kHz; output impedance: 270 ohms; fixed 3 m cable with XLR3-M connector; handmade in USA; incl. microphone holder , protective case and high-quality carrying case; dimensions (H x W x D): 311 x 117 x 83 mm; weight: 2.65 Kg

AEA R44CXE; ribbon microphone; aurally identical version of the R44CX with less expensive external components; polar pattern: figure-of-eight; 1.8 µm thin folded aluminum ribbon (4.7 mm x 59.7 mm); perfect for vocals, strings, woodwind and brass instruments, guitars and drums; frequency range: 20 Hz to 20 kHz; maximum SPL: 165 dB SPL (1% THD > 1 kHz); sensitivity: 4.47 mV/Pa. (-47 dBV) at 1 kHz; Output impedance: 270 ohms; Fixed 3m cable with XLR3-M connector; Handmade in USA; Includes microphone holder , protective case and high-quality carrying case; Dimensions (H x W x D): 311 x 117 x 83 mm; Weight: 2.76 Kg

AEA RPQ 500; ribbon microphone amplifier with 2-band EQ in API 500 format; gain 81 dB gain at 1 kHz (in Mic Mode); adjustable between +13 dB and +62 dB in 12 steps; Low Noise Preamp ON

AEA R84A; active ribbon microphone; active version of the R84 with a level boost of 12 dB; reduced proximity effect and treble boost; polar pattern: figure-of-eight; 1.8 µm thin aluminum ribbon (4.7 mm x 59.7 mm); frequency range: 20 Hz to 20 kHz; Maximum sound pressure level: 141 dB SPL (1% THD > 1 kHz); Output impedance: 92 ohms; Requires 48V phantom power; Fixed 3m cable with XLR3-M connector; Handmade in USA; Includes microphone holder , protective case and carrying case; dimensions (H x W x D): 295 x 99 x 64 mm; weight: 1.5 Kg

AEA R92; ribbon microphone; operating principle: pressure gradient transducer; polar pattern: figure-of-eight; different sound coloration on front and rear; 1.8 µm thin aluminum ribbon (4.7 mm x 59.7 mm); ideal for brass, guitar amps, kick drum and percussion; frequency range: 20 Hz to 20 kHz; maximum sound pressure level: 165 dB SPL (1% THD > 1 kHz); sensitivity: 1.8 mV/Pa (-55dBV) at 1 kHz, no load; output impedance: 270 ohms; dimensions (H x W x D): 191 mm x 74 mm x 64 mm; weight: 0.893 kg; fixed 3m cable with XLR3-M connector; includes microphone holder, protection case and carrying case; handmade in USA

AEA R88 mk2; stereo ribbon microphone in Blumlein arrangement; can also be used as mid-side configuration; 2 ribbons stacked at 90º angle with directional characteristic of an eight; each 1.8 µm thin aluminum ribbon (4.7 mm x 59.7 mm); frequency range: 20 Hz to 20 kHz; maximum sound pressure level: 165 dB SPL; sensitivity: 2. 5 mV/Pa (-52 dBV); Output impedance: 270 Ohm; Connector: XLR-5M male; incl. 4.5 m long cable XLR 5F male to 2 x XLR3-M, swivel adapter, protective cover, high-quality carrying case; Dimensions (H x D): 381 mm x 99 mm; Weight: 2.6 kg; handmade in USA

AEA TRP 500; ribbon microphone amplifier in API 500 format; amplification 85 dB gain at 1kHz; adjustable between +7 dB and +65 dB in 12 steps; low noise preamp ON

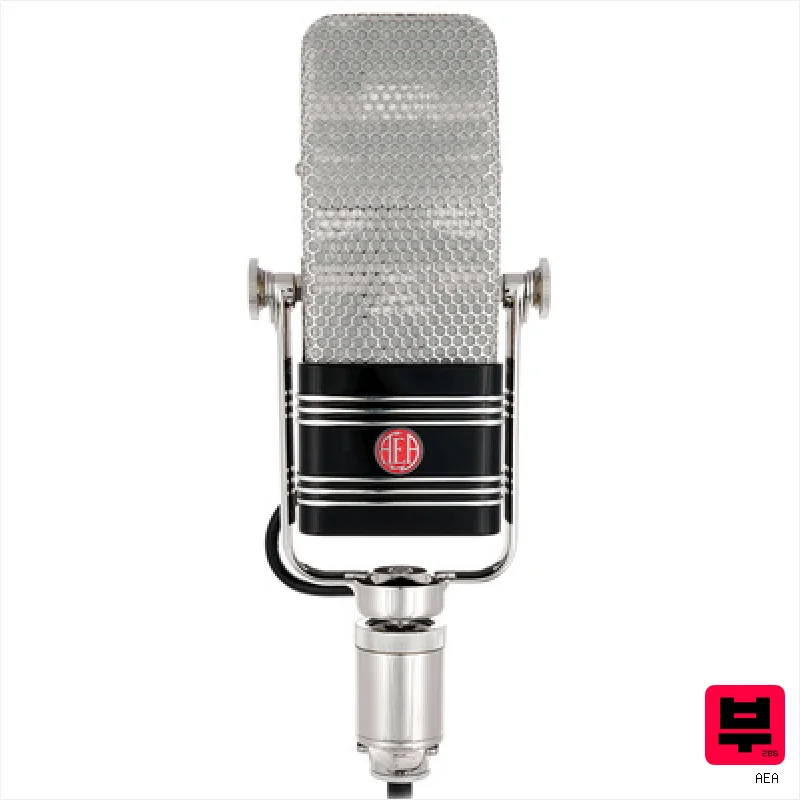

AEA R44CX; ribbon microphone; R44C with +6dB more output due to modified transducer (number of magnets); polar pattern: figure-of-eight; 1.8 µm thin folded aluminum ribbon (4.7 mm x 59.7 mm); perfect for vocals, strings, woodwinds, brass, guitars, and drums; Frequency range: 20 Hz to 20 kHz; Maximum SPL: 165 dB SPL (1% THD > 1 kHz); Sensitivity: 4.47 mV/Pa. (-47 dBV) at 1 kHz; Output impedance: 270 ohms; Fixed 3 m cable with XLR3-M connector; Handmade in USA; Includes microphone holder , protective case and high-quality carrying case; Dimensions (H x W x D): 311 x 117 x 83 mm; Weight: 3.07Kg

AEA KU5A; active ribbon microphone; polar pattern: supercardioid; 1.8 µm thin corrugated aluminum ribbon (14 mm x 290 mm); reduced proximity effect; perfect for speech vocals and instrument pickup; frequency range: 30 Hz to 14 kHz; maximum SPL: 135 dB SPL (1% THD

AEA N8 NUVO; active ribbon microphone; mono version from AEA R88 with pre-amplification; polar pattern: figure-of-eight; 1.8 µm thin aluminum ribbon (4.7 mm x 59.7 mm); perfect for drums, strings and piano/wings; frequency range: 20 Hz to 20 kHz; maximum sound pressure level: 141 dB SPL (1% THD > 1 kHz); sensitivity: 8.3 mV/Pa at 1 kHz; output impedance: 92 ohms; requires phantom power 48V; handmade in USA; includes. Microphone mount , protective case and carrying case; Dimensions (H x D): 225 x 410 mm; Weight: 0.335 kg
