Tegeler

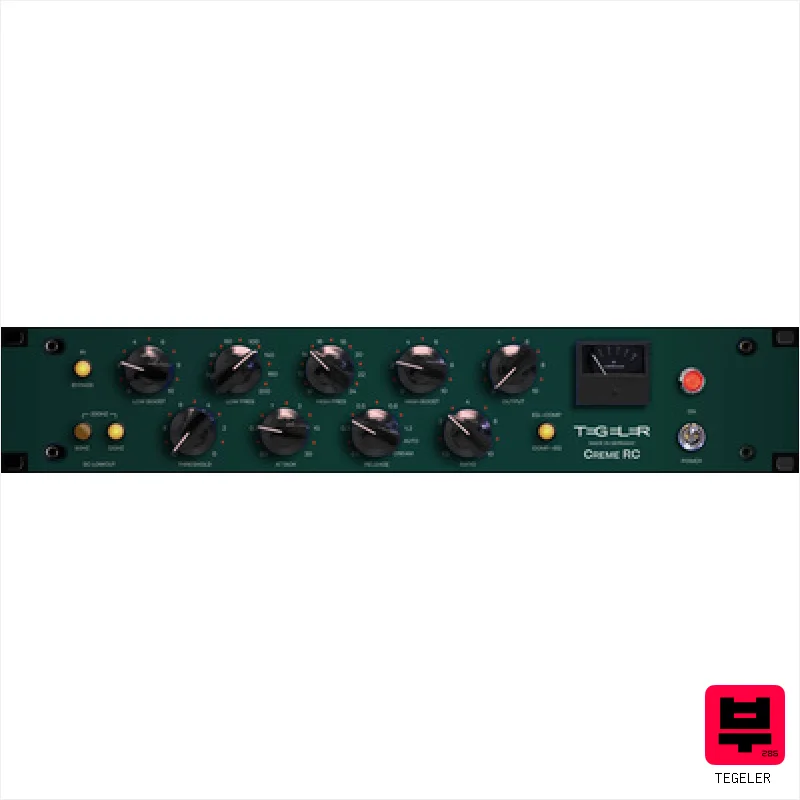

• Remotely controllable via plugin
• With Pultec-style EQ
• Stereo device
• EQ and compressor switchable in the order
• Auto-release "Cream mode"
• Low cut filter in the side chain
• Fridded pots
• Frequency response: 20 - 40,000 Hz +/- 1.5dB
• Balanced XLR inputs and outputs
• Internal power supply with high quality toroidal transformer
• Design: 19"/ 2 U
• Dimensions (W x H x D): 483 x 88.4 x 250 mm

Equaliser features:

• Passive EQ based on the Pultec principle
• Bass boost frequencies: 20-30-50-70-120-160 Hz
• Bass boost level: 0-5dB switchable
• Treble boost frequencies: 6-8-10-12-16-20 kHz
• Treble boost level: 0-5dB switchable

Bus compressor features:

• Low cut filter: 60-120 Hz
• 200 Hz side-chain filter
• Attack: 0.1-0.3-1-3-10-30 ms
• Release: 100-300-600 ms-1.2 s-auto
• Ratio: 1.5-2-4-10

• Tube device (4 triodes)
• Class-A circuit
• Frequency range: 20 - 20,000 Hz +/- 1.5 dB
• Microphone preamp: Microphone input with transformer / 48V / phase
• True 48V phantom power
• Phase switch
• High-impedance instrument input (100 kOhm)
• Character changeable from clean to fat
• Equalizer: Low-cut filter: 80-160 Hz
• Lower-mid boost: 200-300-500-700-1000 Hz
• Mid-cut: 200-300-500-700 Hz 1-1,5-2-3-4-5-7-9 kHz
• High boost: 1,5-2-3-4-5-7-10-12-16-20-24 kHz
• Compressor: Opto compressor
• Vari tube compressor (based on the Vari μ principle)
• Soft-Knee characteristics
• Program-adaptive attack and release timing
• Balanced input and output
• Internal power supply with high-quality toroidal transformer
• Height (H / W / D): 132 (3U) x 483 x 250 mm

• 2x 16 balanced inputs via 4 sub-D sockets (XLR or jack via cable whip, Tascam assignment)
• 2x 4 balanced inputs (Neutrik stereo)
• Internal mixer bus with up to 22 dBu
• Active tube-transformer output stage
• Illuminated VU meter
• Output Level switch
• Frequency response: 20 - 40,000 Hz / - 1.5 dB
• Dynamic:> 110 dB unaffected
• Interpreting between two channels> 90 dB @ 1 kHz
• Internal power supply (15 W) with high quality ring core transformer
• Dimensions (wxhxd): 88 (2U) x 483x250mm

• Combination of digital and analog components
• Integrated DSP
• Via DAW plug-in (AU, AAX, VST) remotely controllable via servo motor pots
• Two double triodes per channel as well as input and output transformers
• Dynamics: > 110 dB unweighted
• Crosstalk attenuation: L / R> 90 dB @ 1 kHz
• Bypass / Mute switch
• Controls for Predelay, room size, density, cool-down, input and mix
• 2 Balanced XLR line inputs
• 2 Balanced XLR line outputs
• Ethernet
• USB (only for service / updates)
• Integrated power supply
• Display
• Type: 19"/ 2 HE
• Dimensions: 483 x 88.1 x 250 mm

• Controlled via DAW plug-in (AU, VST, AAX), or an integrated web server via browser remote and servo-motor potentiometers
• Display
• Frequency response: 20 - 40,000Hz +/- 1.5 dB
• Digital side-chain
• 11 Compression modes
• Side-chain filter as low-cut from 0-300 Hz or tilt filter
• Dynamic range:
• Crosstalk attenuation L/R >90 dB @ 1 kHz
• Transformer balanced XLR input
• 2x Transformer balanced XLR outputs
• Ethernet
• USB (only for service / updates)
• Dimensions (W x H x D): 483 x 132 x 250 mm

• Stereo device
• Placement of the EQ and compressor in the mix can also be switched
• Low-cut filter in the side-chain
• Balanced XLR inputs and outputs
• Internal power supply with high-quality toroidal transformer
• Dimensions (H x W x D): 88.4 (2U) x 483 x 250 mm

Equalizer features:

• Passive EQ after the Pultec principle
• Bass boost frequencies: 20-30-50-70-120-160 Hz
• Bass boost level: 0-5 dB Switchable
• Treble boost frequencies: 6-8-10-12-16-20 kHz
• Treble boost level: 0-5 dB switchable

Bus compressor features:

• Low-cut filter: 60-120 Hz
• Attack: 0.1-0.3-1-3-10-30 ms
• Release: 100-300-600 ms 1.2 s auto
• Ratio: 1.5-2-4-10
• Potentiometers with increment markings
• Frequency response: 20 - 40,000 Hz +/- 1.5 dB

• Opto-compressor from the Tegel Vari Tube Recording Channel
• Frequency response: 20 - 20,000 Hz
• Max. input level: +20 dBu
• Max. output level: +21 dBu
• Dynamic range: = 100 dB
• Max. current consumption: 80 mA
• VU meter
• Rotary control for gain reduction and output volume
• Toggle switches for In, Bypass and Stereo-link as well as Attack + Release time fast, auto, slow
• Format: 500 module
• Weight: 540 g

• Low / low bass: 20, 30, 60 and 100 Hz
• (Peak with adjustable bandwidth): 5,000, 6,000, 8,000, 10,000, 12,000 and 16,000 Hz
• High-frequency attenuation: (Hi shelf): 5,000, 10,000 and 20,000 Hz
• Balanced XLR inputs and outputs
• High-quality input and output transformers
• Bypass switch
• Internal power supply
• Dimensions (H x W x D): 88.1 (2 HU) x 483 x 220 mm

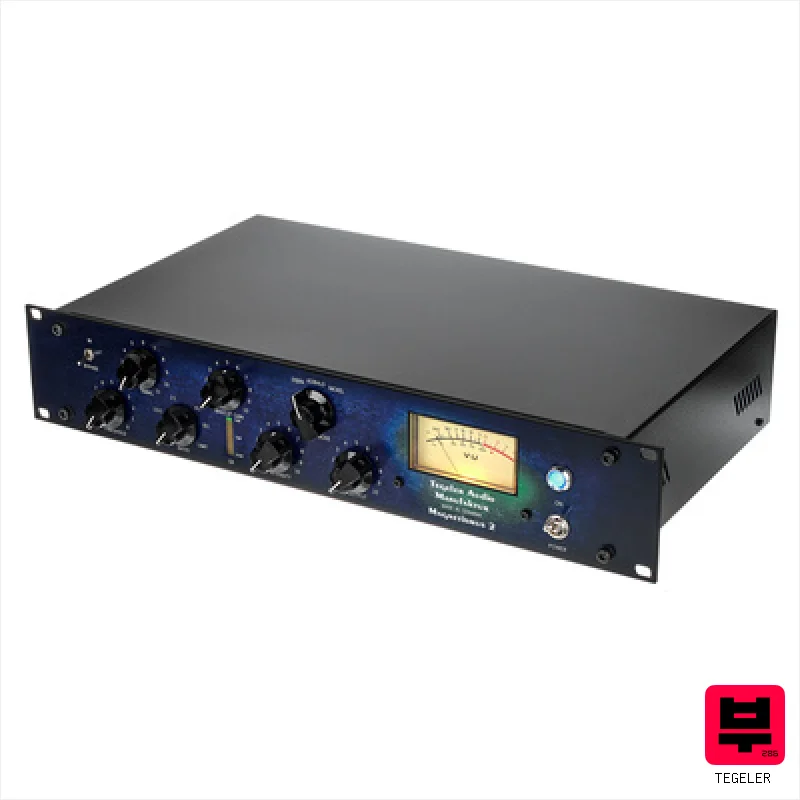

• Stereo device
• Input: XLR balanced
• Output: XLR transformer balanced
• VCA-compressor
• Adjustable threshold
• Ratio
• Timing adjustable in a wide range
• Compression indicator as LED chain
• Intensity and level of transient processing adjustable
• Illuminated VU meter for operating point control
• Output level adjustable
• Bypass switch
• Internal power supply
• Dimensions: 88 x 483 x 250 mm
• Format: 19" / 2 HE

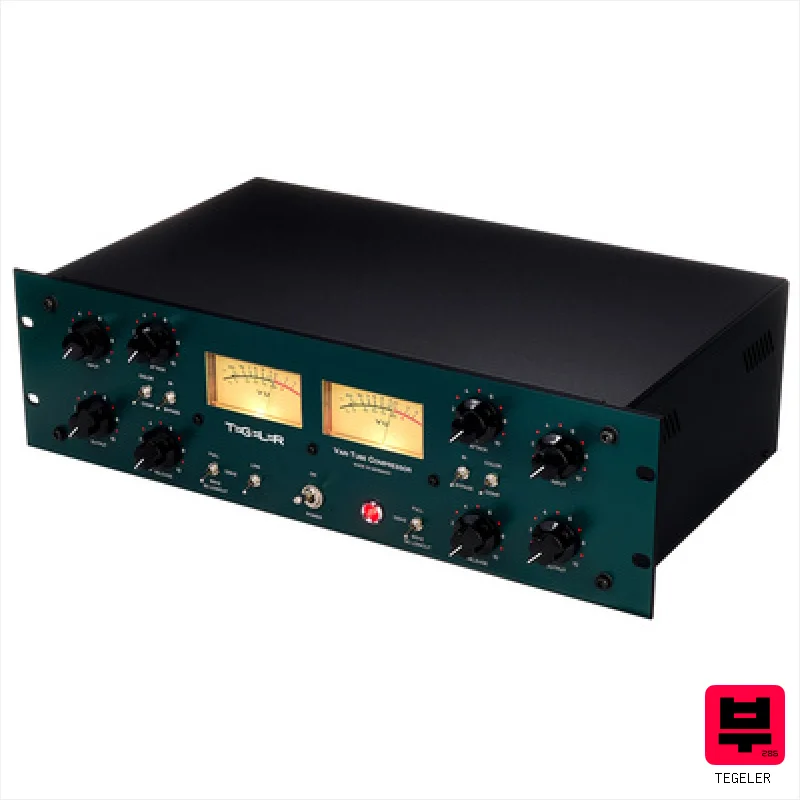

• Can be used in stereo or dual mono
• Class-A circuit
• All tube signal path
• Potentiometers with increment markings
• Transformer balanced input and output (XLR)
• Frequency response: 20 - 40,000 Hz, +/- dB
• Dynamic range: > 110 dB un-weighted
• Crosstalk attenuation: L / R > 90 dB @ 1 kHz
• Internal power supply (25 W) with high-quality toroidal transformer
• New: Low cut filter in the side-chain: 60 / 120 Hz
• Dimensions (H x W x D) 132 x 483 x 250 mm

• Active equaliser with high-quality film capacitors
• Frequency range: 20 - 22,000 Hz
• Max. amplification level: +15 dB
• Max. attenuation level: -15 dB
• High-Shelf: 3.000 - 10,000 Hz
• High-Mid Bell: 1.000 - 16,000 Hz
• Low-Mid Bell: 60 - 1,000 Hz
• Low Shelf: 50 - 400 Hz
• Fine-tuned potentiometers
• Input and output transformer
• Bypass switch
• Construction: 500 module
