Neve

• Channel Strip for the legendary 88RS
• Hi and low pass filter
• Four band EQ
• Compressor
• Gate and insert send return
• Filter and/or EQ section switchable with Dynamic Side Chain
• USB port for PC or Mac for total recall

• Circuit design of the legendary 1081 preamps
• 9.5" Housing
• Two devices can be connected to an 8-channel unit in 19" housing
• Remote control via Mac / Intel computer and Neve remote control software
• Selectable XLR microphone or electronically balanced line input
• Switchable 48V phantom power per channel
• Digital I/O options: Firewire / AES interface with 4-channel A/D or D/A conversion
• Analog insert per channel

• Mono
• Transformer-balanced inputs and outputs
• Based on the well-known Class A amplifier
• Legendary Neve sound
• Build: 1 U / 19"

• Usable as a standalone or rack mount for Neve racks/ series 80
• Class A Design microphone preamp
• 3-Band EQ (fixed HF plus two switchable filters with cut/ boost) and high pass filter
• Mic and line input
• Including power adapter

• An optional digital interface with 8 channels A/D conversion for each preamp output and two channels D/A conversion for the digital monitor return signal
• Word Clock In/Out
• A digital headroom selector switch for switching the DMON input and digital preamp outputs 1 to 8 from +18 dBu, +24 dBu or +26 dBu
• It can be used as a primary/core audio interface via the USB-B connection
• The primary and secondary Dante connectors allow the 1073 OPX to be connected to any Dante audio-over-IP network as a Dante-enabled preamplifier

• Analogue microphone preamplifier
• Stereo
• Based on the well-known Class A preamp design with 3 band EQ: +/- 16 db
• High shelving 12 Khz, +/- 18 db mid with 6 switchable frequencies and fixed Q, +/- 16 db low shelving with 4 corner frequencies
• Exclusive Neve Marinair transformer for input/output
• Switchable insert path
• Design: 19"/ 2 U

• With digital out, stereo
• Based on the well-known Class A amplifiers
• Legendary Neve sound
• trafosym i/os
• With ADC up to 192 kHz and DSD
• Analogue insert point ahead of AD converter
• Size: 19" / 1 RU

• In the 500 Series API format
• Discreet Class A / B design
• Transmitter in the entrance
• Driver stages
• Sidechain and exit
• Independent limiter and compressor in / out
• Hard bypass switch
• Slow Attack with classic 2264A setting or new Slow Attack for bus compression
• LED Meter for Gain Reduction
• I / O points for insert operation with 1073LB
• Shielded housing for maximum Shielding against electromagnetic influences

• 5 Switchable EQ bands
• Selectable HP and LP filters (18dB per octave)
• Separate 48V phantom powering
• Phase flip: 180°
• Solo button selects channel unbalanced output
• Microphone input: input impedance 300 or 1200 Ohms, gain +20dB to +80dB in 5dB steps
• Line input: input impedance 10 kOhm, gain -15dB to +20dB in 5dB steps
• Frequency response: 20Hz to 20kHz, -3dB @ 7Hz and 35kHz
• Dimensions: 278 x 274 x 45 mm
• Weight: 2.9 kg

Note: requires an optional AMS Neve 1081 3U Horizontal Rack (article no. 539570, not included in the delivery)

• Mono EQ in the 500 series API format
• Gain indicator with signal LED
• Bypass switch
• Electronically balanced inputs / outputs
• Audio processing Insert Design: in connection with the 1073 LB Preamp, allows the use in the insertion path of the signal chain
• Fully shielded housing for max. Shielding against electromagnetic influences

• 24 Fader console with 2 line level inputs per channel
• Switch from mix to record input at the push of a button
• 24 Direct outputs
• 4 Groups and mix bus with 2-band EQ and switchable inserts
• Marinair transformers on Mix, AFL, CUE buses
• 24 Switchable channel inserts
• 48-Channel mix mode
• 2 x 1073 preamps and two DI inputs
• 2 x Headphone amplifiers with independent source selection
• 2 x Stereo reverb returns
• Stereo width for the mix bus
• Backlit stereo VU meter with source selection
• 3 x Speaker outputs
• 3 x External inputs
• 3 Solo modes: SIP, AFL, PFL
• Dual cue system and three-way talkback system
• Recall function for saving / loading multiple sessions
• 2 x 500 slots with different routings (modules not included)
• Third input per channel enables inline use
• Dimensions (W x D x H): 1190 x 850 x 500 mm
• Weight: 53 kg

• 8 Combo socket Microphone / Line / Instrument inputs on the front
• Separate Sub-D25 line and mic inputs on the back
• 8 Line outputs Sub-D25
• Remote control software for easy access to all parameters and recall functionality
• Per channel: 48 V phantom power, 25 dB pad, switchable input impedance (300/1300 ohms), 80 Hz low cut
• Phase inversion
• Separate stereo monitor path with independent level control
• imensions: 19"/ 2U

• 16 Channels with additional Aux inputs Cue
• Level, Pan, Solo, and Mute switches
• Settings are available on PC or Mac via USB
• Typical Neve amplifier circuit
• Different insert switching possibilities
• Fixed insert point in the sum
• Special centre and side signal - Insert Send Return
• Solo In Place Function
• Exclusive stereo track control (stereo width)
• Separate monitor and cue controls
• Connections: Main and old speaker outs, talkback mic and headphone output
• Optional digital output card (Art.113677)
• Size: 2U rack with specially shielded power supply, trafosym. outputs

• Filters based on the design of the 8801 and 88RS analogue consoles
• +/- 20 dB input trim
• High pass filter 25 Hz to 300 Hz 12 dB per octave
• Low pass filter 3 kHz to 15 kHz 12 dB per octave
• EQ High 1.5k to 18kHz
• Switchable shelving / Bell and Hi Q
• EQ Mid High 0.8 kHz to 9 kHz
• Q range: 0.3 to 7 freely adjustable
• EQ Mid Low 120 Hz to 2 kHz
• Q range: 0.3 to 7 freely adjustable
• EQ Low 33 Hz to 440Hz
• Switchable shelving / Bell and Hi Q
• EQ bypass
• USB port Mac or PC
• Connections: XLR / KLinke input +4 dBu, -10 dBV, XLR and parallel outputs
• Ext. Power supply 100V-250V

• Based on the well-known Class A amplifier
• Legendary Neve sound
• trafosym i/os
• Size: 19" / 1 RU

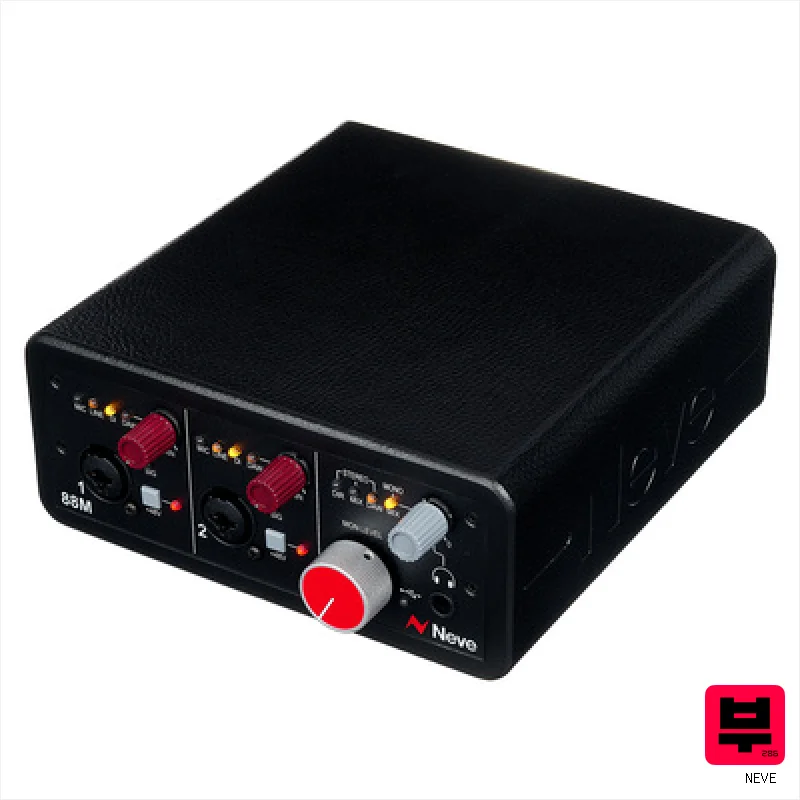

• 10 Input / 10 output channels
• 2 Mic/line/instrument preamps based on the 88RS console
• Marinair transformer
• Up to 24 bit / 192 kHz
• 1x ADAT I/O
• Stereo headphone output
• Balanced inserts for channel 1 and 2
• Outputs: 2x 6.3 jack balanced
• Bus powered
• Dimensions (W x D x H): 182 x 203 x 76 mm
• Weight: 1.68 kg

• For the stereo sum of the 8816 summing mixer
• Sample rate up to 192 kHz and DSD

• Based on the Classic 2254 series of the late 60s
• For music recording, mastering and post-production
• Neve 2254 discrete Class A circuit design
• Transformer-coupled circuitry on input, bridge driver, sidechain and output
• Fast Attack Time and Level controls
• Independent limiter and compressor in/out
• Ratio adjustable from 1.5:1 to 6:1
• Gain make-up control
• Hardbypass switch
• Link option
• USB type-B for use with a PC / Mac and the Total Recall software
• VU meter switchable between gain reduction, in- and output signal
• Input: 1x XLR (line, balanced)
• Output: 1x XLR (balanced)
• Frequency range: 20 - 20,000 Hz
• External power supply: 500 mA, 36 V DC
• Dimensions: 19" / 1 U
• Handmade in UK
